Exporting Video
The Export buttons allow you to save a picture or video, print a picture, or save files to a CD or DVD (including DVD+R and DVD+RW). Left to right, the icons are Save Picture, Save Video, Print Picture, and Burn Saved Files to CD or DVD:
To export video from up to 16 cameras, or from a single camera on exacqVision Start, perform a video search and complete the following steps:

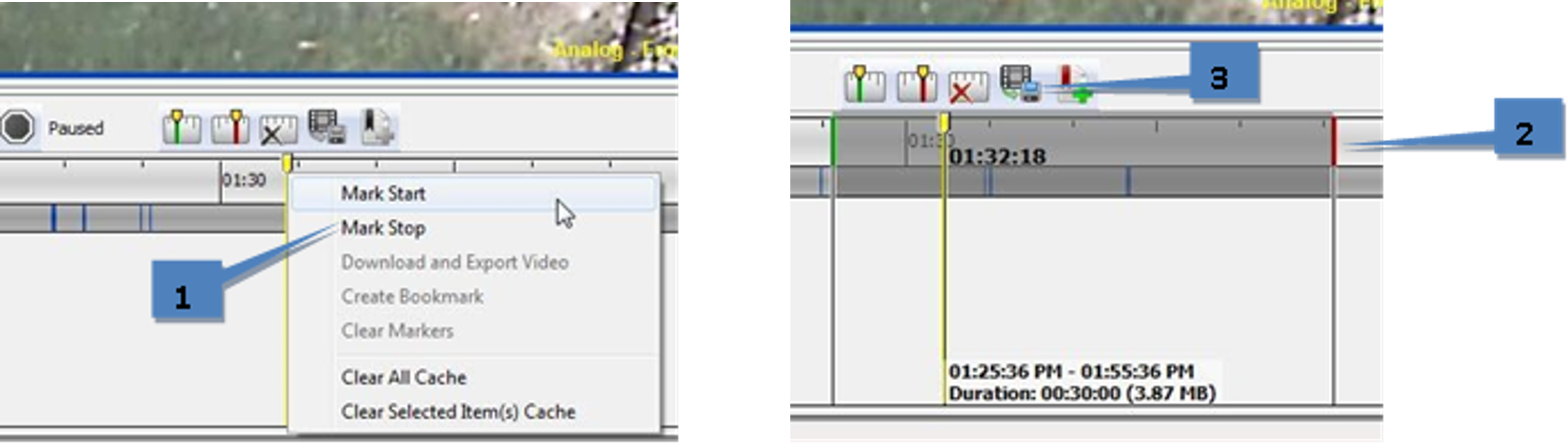

1. Locate the start of the video clip. Right-click the timeline (or right-click the video window) and select Mark Start or Mark Stop from the pop-up menu.
2. A default export range is displayed, with the green marker indicating the start of the export clip and a red marker indicating the end of the export clip. You can slide the start and end markers earlier or later as desired.
3. Click the Export Video button.
4. In the Export Video window, select a file name and location.
5. Select a file type.
6. Click Save (not shown).
You can export using the following file types:
· An EXE file can be launched in its own player and run by a user who does not have access to exacqVision Client.
· A PSX file is a packaged .ps file that can be run with a simple double-click.
· An AVI or MOV file allows you to email it to another exacqVision Client user. (If you are running the client on a Linux or Mac operating system, you should save the clip as a PSX file unless you are emailing it to a Windows user.)
